Introduction of UPVC SCH 40/SCH 80 pipes

UPVC SCH 40/SCH 80 pipes are two common standards of UPVC pipe.SCH 80 pipe is thicker than SCH 40, which allows SCH 80 pipe to withstand higher pressures.The pipe is typically used in higher pressure applications, while SCH 40 is more suitable for general low pressure applications.UPVC SCH 40 pipe is commonly used for non-pressure or low-pressure systems such as sewerage and rainwater collection systems in residential and commercial buildings; UPVC SCH 80 pipe is more commonly used for industrial fluid transfer, chemical plants, pharmaceutical factories, and other locations where high pressure or corrosive media need to be handled.

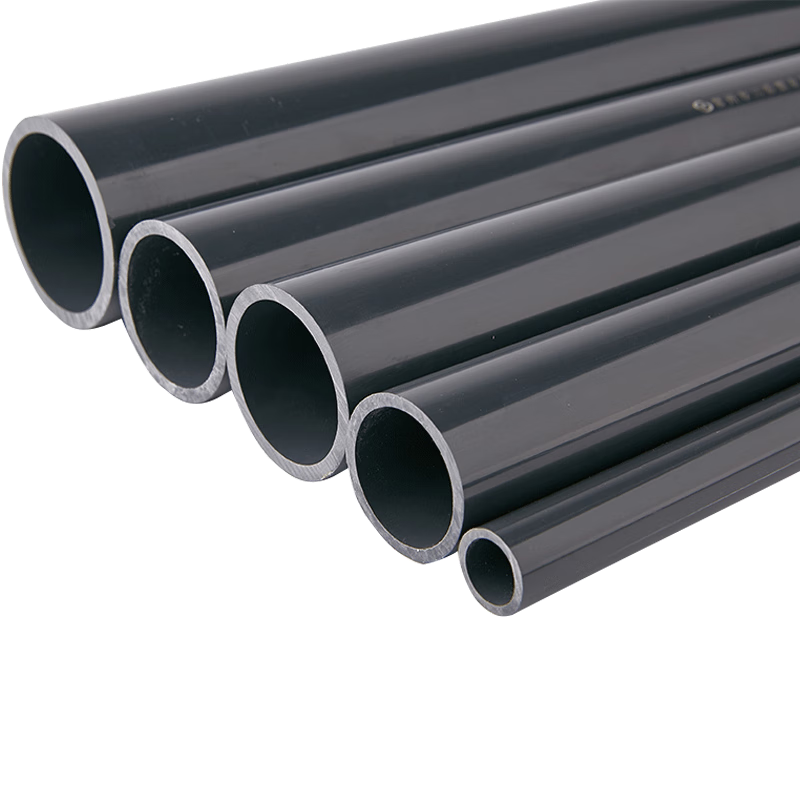

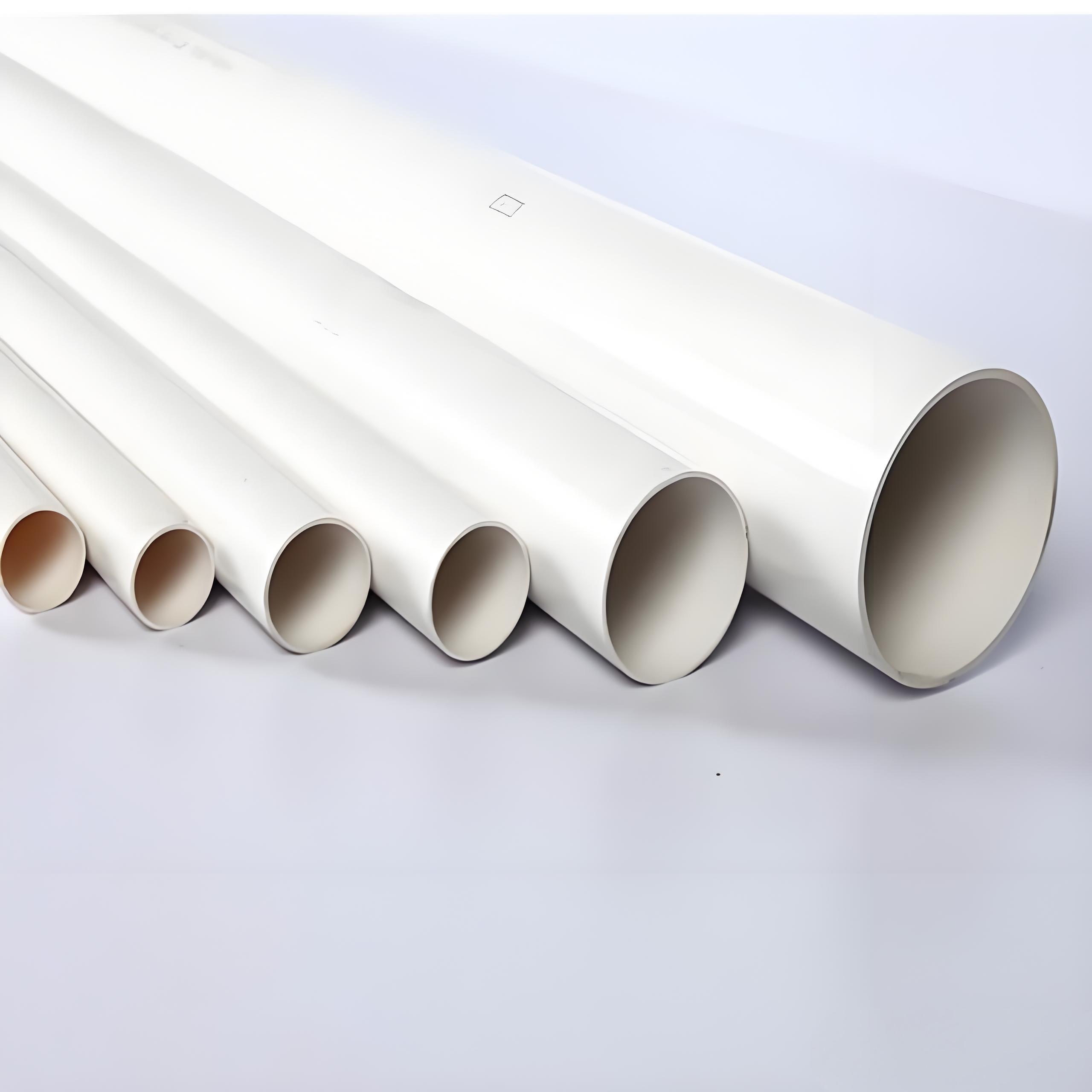

Details of UPVC SCH 40/SCH 80 pipes

Specifications of UPVC SCH 40/SCH 80 pipes

UPVC SCH 40/SCH 80 pipes, which are characterized by strong support resistance and excellent insulation performance. All models and sizes are as follows:

O.D. = Outside diameter

I.D. = inside diameter

PSI rating

Schedule 40 PVC Pipe Dimensions

Nom.Pipe Size (in)	O.D.	AverageI.D.	Min.Wall	NominalWt./Ft.	Max.W.P.PSI
1/8	0.405	0.249	0.068	0.051	810
1/4	0.540	0.344	0.088	0.086	780
3/8	0.675	0.473	0.091	0.115	620
1/2	0.840	0.602	0.109	0.170	600
3/4	1.050	0.804	0.113	0.226	480
1	1.315	1.029	0.133	0.333	450
1-1/4	1.660	1.360	0.140	0.450	370
1-1/2	1.900	1.590	0.145	0.537	330
2	2.375	2.047	0.154	0.720	280
2-1/2	2.875	2.445	0.203	1.136	300
3	3.500	3.042	0.216	1.488	260
3-1/2	4.000	3.521	0.226	1.789	240
4	4.500	3.998	0.237	2.118	220
5	5.563	5.016	0.258	2.874	190
6	6.625	6.031	0.280	3.733	180
8	8.625	7.942	0.322	5.619	160
10	10.750	9.976	0.365	7.966	140
12	12.750	11.889	0.406	10.534	130
14	14.000	13.073	0.437	12.462	130
16	16.000	14.940	0.500	16.286	130
18	18.000	16.809	0.562	20.587	130
20	20.000	18.743	0.593	24.183	120
24	24.000	22.544	0.687	33.652	120

Schedule 80 PVC Pipe Dimensions

Nom.Pipe Size (in)	O.D.	AverageI.D.	Min.Wall	NominalWt./Ft.	Max.W.P.PSI
1/8	0.405	0.195	0.095	0.068	1230
1/4	0.540	0.282	0.119	0.115	1130
3/8	0.675	0.403	0.126	0.158	920
1/2	0.840	0.526	0.147	0.232	850
3/4	1.050	0.722	0.154	0.314	690
1	1.315	0-936	0.179	0.461	630
1-1/4	1.660	1.255	0.191	0.638	520
1-1/2	1.900	1.476	0.200	0.773	470
2	2.375	1.913	0.218	1.070	400
2-1/2	2.875	2.290	0.276	1.632	420
3	3.500	2.864	0.300	2.186	370
4	4.500	3.786	0.337	3.196	320
6	6.625	5.709	0.432	6.102	280
8	8.625	7.565	0.500	9.269	250
10	10.750	9.493	0.593	13.744	230
12	12.750	11.294	0.687	18.909	230
14	14.000	12.410	0.750	22.681	220
16	16.000	14.213	0.843	29.162	220
18	18.000	16.014	0.937	36.487	220
20	20.000	17.814	1.031	44.648	220
24	24.000	21.418	1.218	63.341	210

Applications of UPVC SCH 40/SCH 80 pipes

1,Water Supply Lines

UPVC pipe are extensively utilized in water supply lines due to their resistance to acids, alkalis, corrosion, rust, and scaling. These properties effectively safeguard water quality and prevent secondary pollution, making UPVC pipes a preferred choice as an environmentally friendly building material.

2,Sewage systems

In construction applications, UPVC pipes are widely employed for drainage and sewage systems. Their lightweight and corrosion-resistant characteristics facilitate convenient installation and transportation.

3,Irrigation systems

UPVC pipes significantly reduce water wastage and enhance irrigation efficiency. For instance, UPVC drip irrigation systems can conserve 50 to 70 percent of water while reducing the usage of fertilizers and pesticides, thereby lowering production costs

Packing and Shipment

Depends on the products and qty,we could make the packing of coiling,rolls,bundle packing,crates or boxes,etc.

Shipment:By sea,railway,by air or as customer’s request.

Company Profile

Luoyang Datang Energy Tech Co.Ltd was established in 2015 and located in High-tech development zone, Luoyang City, covers a large area with state-of-the-art facilities. Our government offers a supportive environment, including convenient transportation and access to essential resources. Since inception in 2015, we have been committed to excellence in pipes and fittings, continuously innovating to meet market demands.

If you need PPR Pipes and Fittings,Please feel free to contact us(sales@pipesandfittings.net)

Payment Terms

T/T,L/C at sight,Western Union & Paypal,etc.

FAQ of UPVC SCH 40/SCH 80 pipes

Q1,What are UPVC Pipes, their types and advantages?

UPVC refers to unplasticized polyvinyl chloride, which is a kind of piping made from PVC plastic. It is becoming an increasingly preferred choice for water and wastewater systems due to its advantages such as being non-toxic, durable, easy to install and requiring low maintenance compared to traditional materials like metal and concrete.

Q2,How many types of UPVC pipes are there?

There are three types of UPVC pipes: solid wall, cellular core, and multi-layer.

Solid Wall UPVC Pipes

Solid wall UPVC pipes are the most common type among UPVC pipes. They are fabricated from a single piece of material and feature a smooth inner surface. Solid wall UPVC pipes can be utilized for various purposes, such as drainage, sewerage, water supply, and electrical conduit.

Cellular Core UPVC Pipes

Cellular core UPVC pipes have an inner layer of foam, which makes them lighter compared to solid wall UPVC pipes. Cellular core UPVC pipes have diverse applications, including insulation, soundproofing, and impact absorption.

Multi-Layer UPVC Pipes

Multi-layer UPVC pipes are composed of multiple layers of material bonded together. They are available in a wide range of sizes and can be employed for various applications, such as drainage, sewerage, water supply, and electrical conduit. Multi-layer UPVC pipes are more resistant to chemical damage and temperature fluctuations than either solid wall or cellular core UPVC pipes.

Q3,What is the difference between PVC & UPVC?

The main points are that PVC is less strong and durable but more flexible than UPVC, and UPVC is unplasticized, stronger and better for piping projects due to its strength, durability and ease of installation. UPVC Pipes and Fittings: Installation & Maintenance

Q4,What’s the main applications of upvc pipes?

Water Supply Systems: UPVC pipe fittings are widely employed in water supply systems of both residential and commercial structures. They are utilized to link and guide the water flow within plumbing networks, including providing water to faucets, showers, toilets, and other fixtures.

Drainage Systems: UPVC fittings are frequently utilized in drainage systems to facilitate the elimination of wastewater and sewage from buildings. They contribute to establishing efficient drainage pipelines for both indoor and outdoor installations.

Irrigation Systems: UPVC pipe fittings are appropriate for irrigation systems in agriculture and landscaping. They are used to disseminate water to crops, gardens, and lawns, offering an efficient and dependable water supply for plant growth.
