HIGH-QUALITY UPVC PIPE FOR PLUMBING & CONSTRUCTION

Introduction of UPVC Pipe

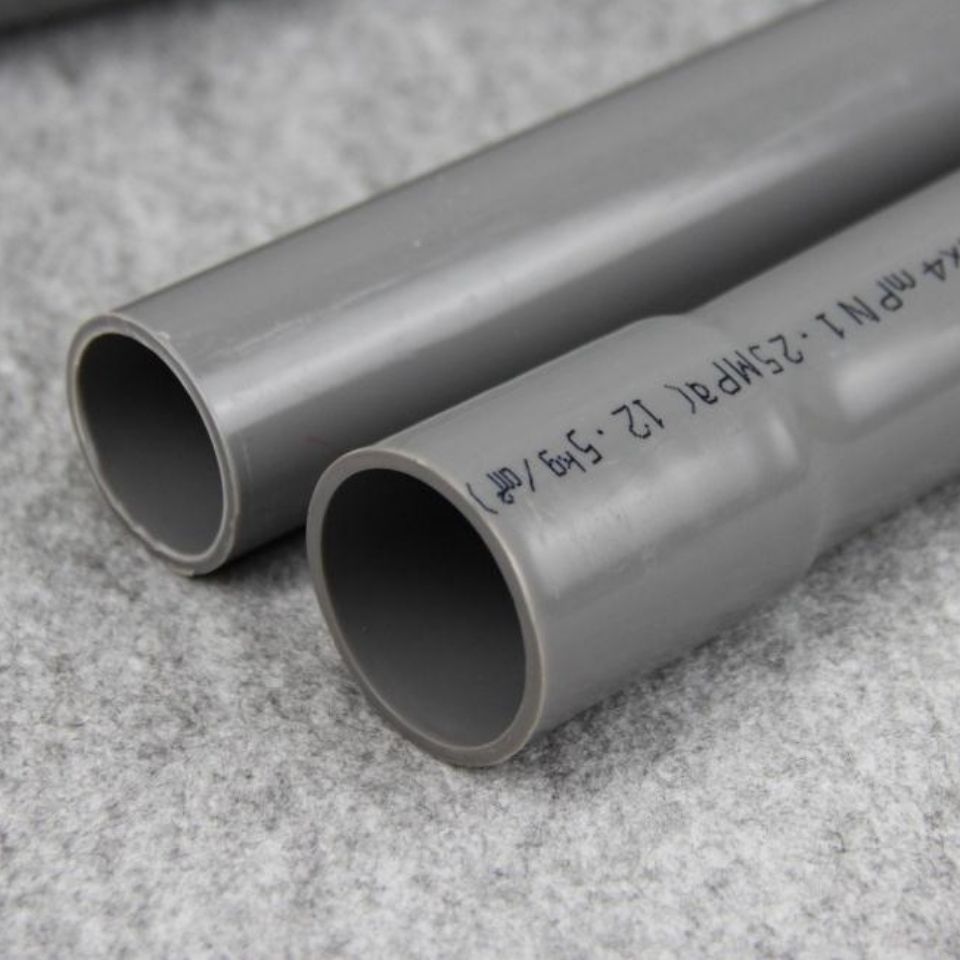

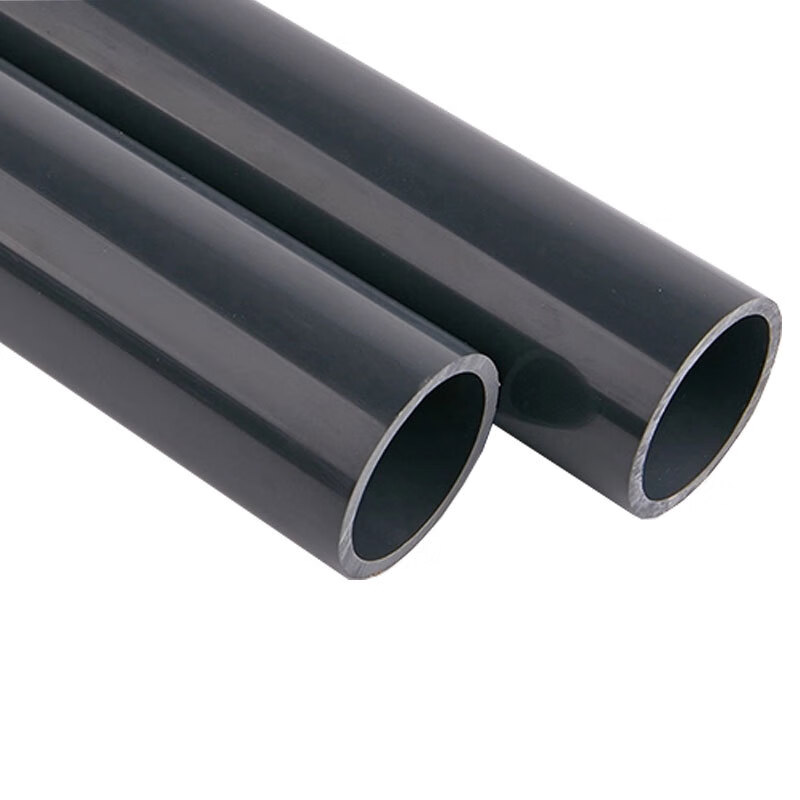

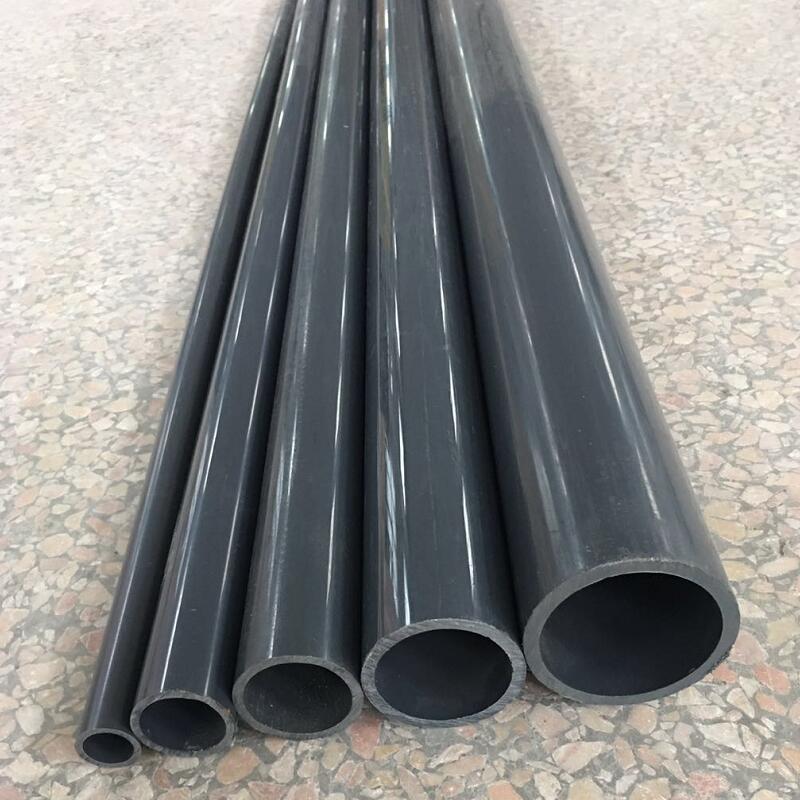

UPVC pipe or unplasticized polyvinyl chloride pipe, is a type of piping material derived from PVC plastic. Owing to its superior corrosion resistance and flexibility compared to traditional materials like metal and concrete, UPVC is especially well-suited for water supply networks. Consequently, it has increasingly become a favored choice for both water supply and sewage treatment systems.

Details of UPVC Pipe

UPVC is a type of plastic that is used in a variety of applications.Contemporary,UPVC pipes are appropriate for use as electrical conduits and sewage pipelines, exhibiting the following characteristics:

Non-Toxic

Durable

Easy to Install

Low Maintenance

Cost-Effective

Leak Resistant

Smooth Flow

Acid Resistance

Temperature Resistance

Specifations of UPVC Pipe

All pipes are made to provide an effective length(after installation):

6.0 meters（from 20 mm to 250 mm)

5.8 meters(from 315 mm to 500 mm)

Nominal Size		Nominal outside diameter “D”	Schedule 40			Schedule 80
			Wall thickness   “T” in mm	Working Pressure		Wall thickness “T” in mm	Working Pressure
mm	inch	mm	mm	kgf/cm2	PSI	mm	kgf/cm2	psi
15	½”	21.34  (± 0.10)	2.77 (+0.51)	41.4	589	3.73 (+0.51)	58.6	833
20	¾”	26.67 (± 0.10)	2.87 (+0.51)	33.1	470	3.91 (+0.51)	47.6	677
25	1″	33.40  (± 0.13)	3.38 (+0.51)	31.0	440	4.55 (+0.53)	43.4	617
30	1¼”	42.16 (± 0.13)	3.56 (+0.51)	25.5	362	4.85 (+0.58)	35.9	510
40	1½”	48.26 (± 0.15)	3.68 (+0.51)	22.8	324	5.08 (+0.61)	32.4	460
50	2″	60.32 (± 0.15)	3.91 (+0.51)	19.3	274	5.54 (+0.66)	27.6	392
65	2½”	73.02 (± 0.18)	5.16 (+0.61)	20.7	294	7.01 (+0.84)	29.0	412
80	3″	88.90 (± 0.20)	5.49 (+0.66)	17.9	254	7.62 (+0.91)	25.5	362
100	4″	114.30 (±0.23)	6.02 (+0.71)	15.2	216	8.56 (+1.02)	22.1	314
150	6″	168.28(± 0.28)	7.11 (+0.86)	12.4	176	10.97 (+1.32)	19.3	274
200	8″	219.08(± 0.38)	8.18 (+0.99)	11.0	156	12.70 (+1.52)	17.2	244

Applications of UPVC Pipe

1,Water Supply Lines

UPVC pipe are extensively utilized in water supply lines due to their resistance to acids, alkalis, corrosion, rust, and scaling. These properties effectively safeguard water quality and prevent secondary pollution, making UPVC pipes a preferred choice as an environmentally friendly building material.

2,Sewer lines

In construction applications, UPVC pipes are widely employed for drainage and sewage systems. Their lightweight and corrosion-resistant characteristics facilitate convenient installation and transportation.

3,Irrigation systems

UPVC pipes significantly reduce water wastage and enhance irrigation efficiency. For instance, UPVC drip irrigation systems can conserve 50 to 70 percent of water while reducing the usage of fertilizers and pesticides, thereby lowering production costs

Packing and Shipment

Depends on the products and qty,we could make the packing of coiling,rolls,bundle packing,crates or boxes,etc.

Shipment:By sea,railway,by air or as customer’s request.

Company Profile

Luoyang Datang Energy Tech Co.Ltd was established in 2015 and located in High-tech development zone, Luoyang City, covers a large area with state-of-the-art facilities. Our government offers a supportive environment, including convenient transportation and access to essential resources. Since inception in 2015, we have been committed to excellence in pipes and fittings, continuously innovating to meet market demands.

If you need PPR Pipes and Fittings,Please feel free to contact us(sales@pipesandfittings.net)

Payment Terms

T/T,L/C at sight,Western Union & Paypal,etc.

FAQ of UPVC pipe

Q1,What are UPVC Pipes, their types and advantages?

UPVC refers to unplasticized polyvinyl chloride, which is a kind of piping made from PVC plastic. It is becoming an increasingly preferred choice for water and wastewater systems due to its advantages such as being non-toxic, durable, easy to install and requiring low maintenance compared to traditional materials like metal and concrete.

Q2,How many types of UPVC pipes are there?

There are three types of UPVC pipes: solid wall, cellular core, and multi-layer.

Solid Wall UPVC Pipes

Solid wall UPVC pipes are the most common type among UPVC pipes. They are fabricated from a single piece of material and feature a smooth inner surface. Solid wall UPVC pipes can be utilized for various purposes, such as drainage, sewerage, water supply, and electrical conduit.

Cellular Core UPVC Pipes

Cellular core UPVC pipes have an inner layer of foam, which makes them lighter compared to solid wall UPVC pipes. Cellular core UPVC pipes have diverse applications, including insulation, soundproofing, and impact absorption.

Multi-Layer UPVC Pipes

Multi-layer UPVC pipes are composed of multiple layers of material bonded together. They are available in a wide range of sizes and can be employed for various applications, such as drainage, sewerage, water supply, and electrical conduit. Multi-layer UPVC pipes are more resistant to chemical damage and temperature fluctuations than either solid wall or cellular core UPVC pipes.

Q3,What is the difference between PVC & UPVC?

The main points are that PVC is less strong and durable but more flexible than UPVC, and UPVC is unplasticized, stronger and better for piping projects due to its strength, durability and ease of installation. UPVC Pipes and Fittings: Installation & Maintenance

Q4,What’s the main applications of upvc pipes?

Water Supply Systems: UPVC pipe fittings are widely employed in water supply systems of both residential and commercial structures. They are utilized to link and guide the water flow within plumbing networks, including providing water to faucets, showers, toilets, and other fixtures.

Drainage Systems: UPVC fittings are frequently utilized in drainage systems to facilitate the elimination of wastewater and sewage from buildings. They contribute to establishing efficient drainage pipelines for both indoor and outdoor installations.

Irrigation Systems: UPVC pipe fittings are appropriate for irrigation systems in agriculture and landscaping. They are used to disseminate water to crops, gardens, and lawns, offering an efficient and dependable water supply for plant growth.
