All Size Available Plastic PVC Pipe And Fittings

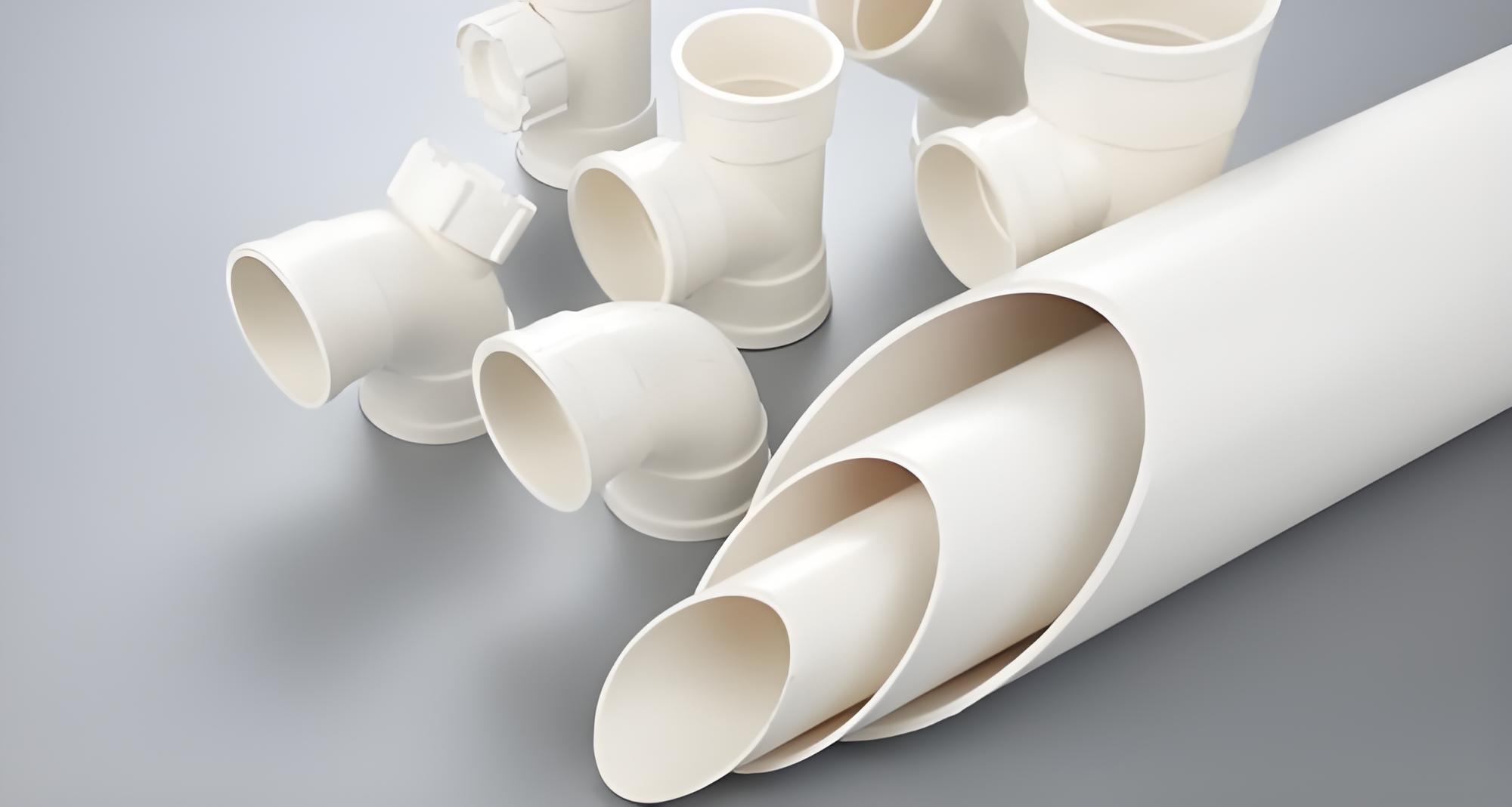

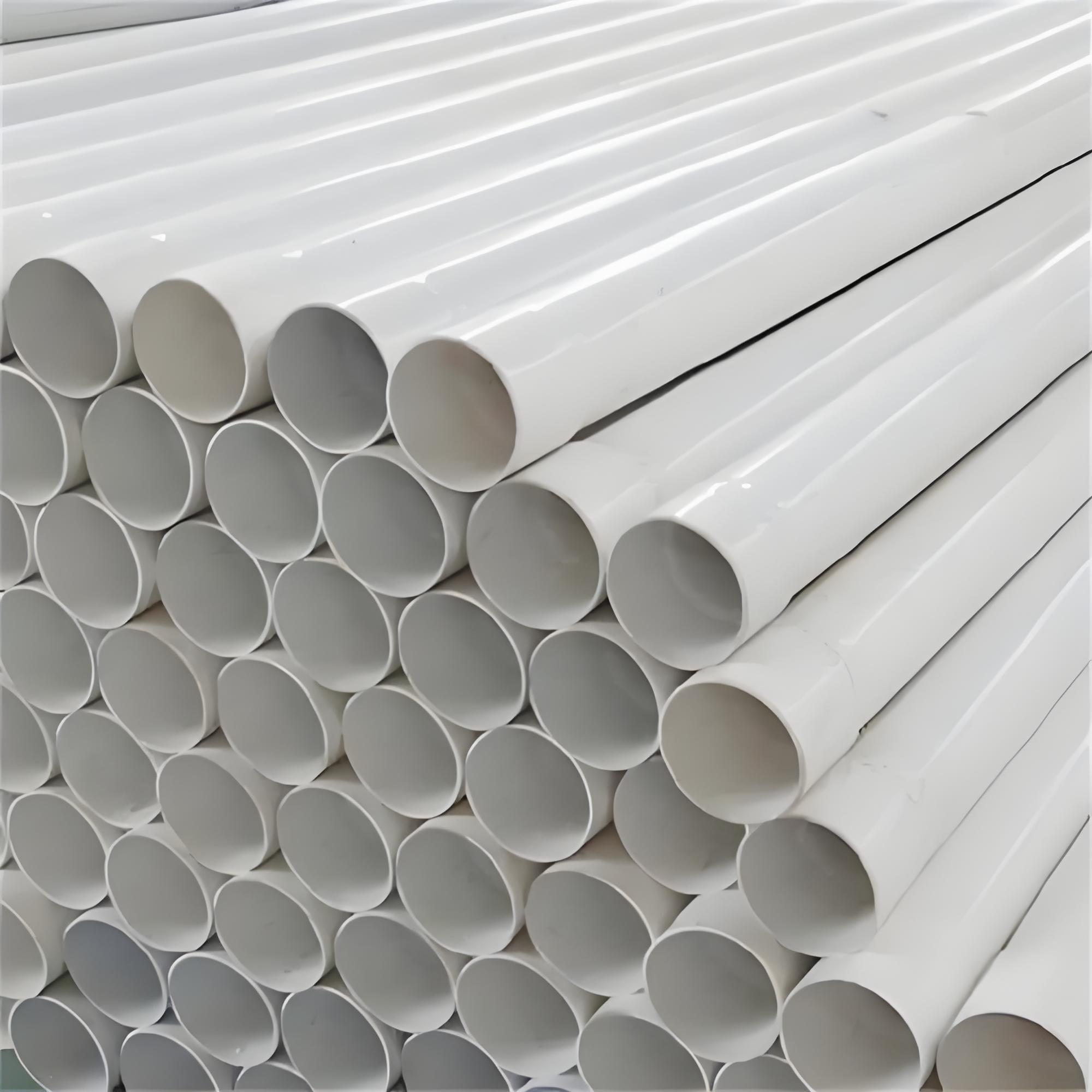

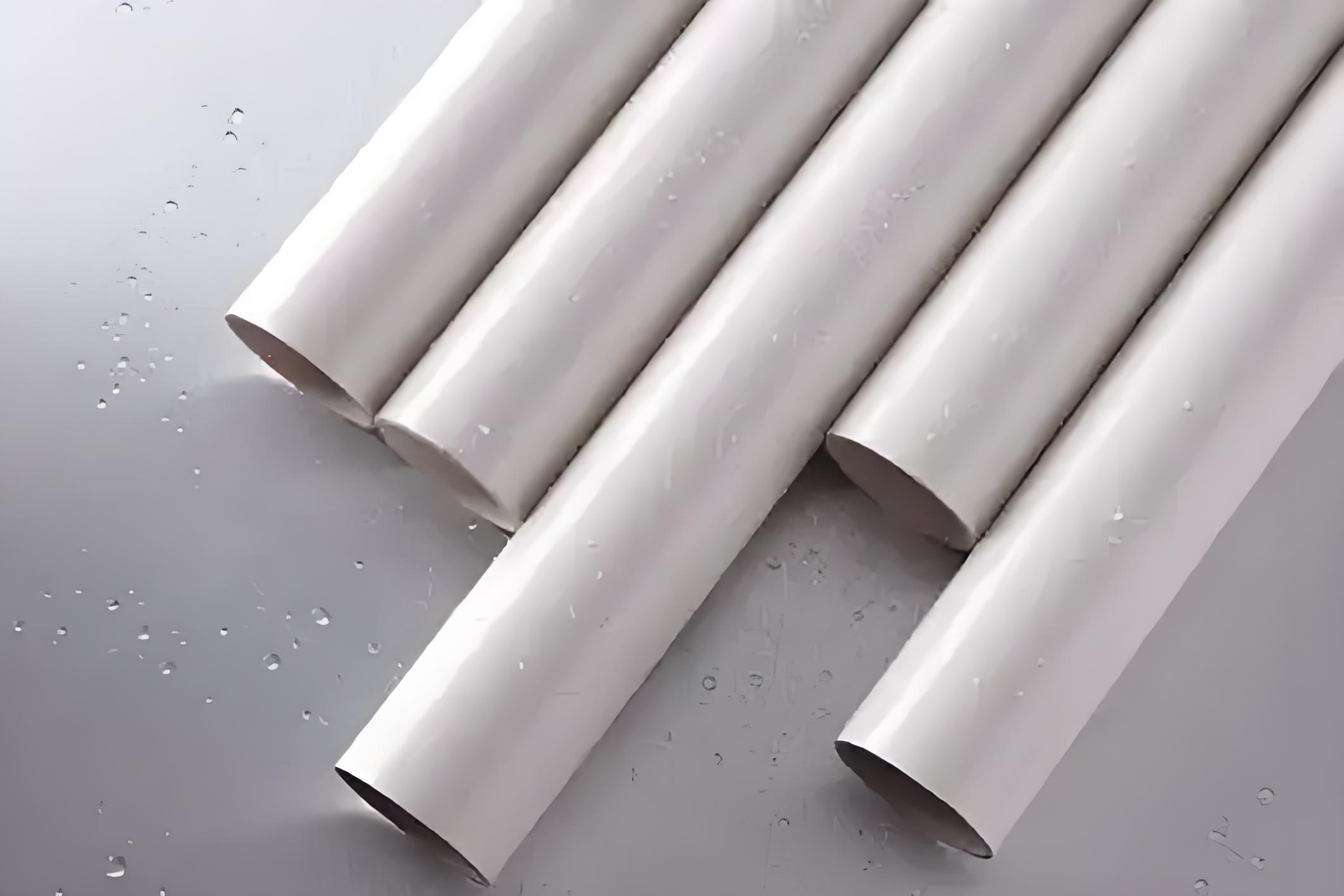

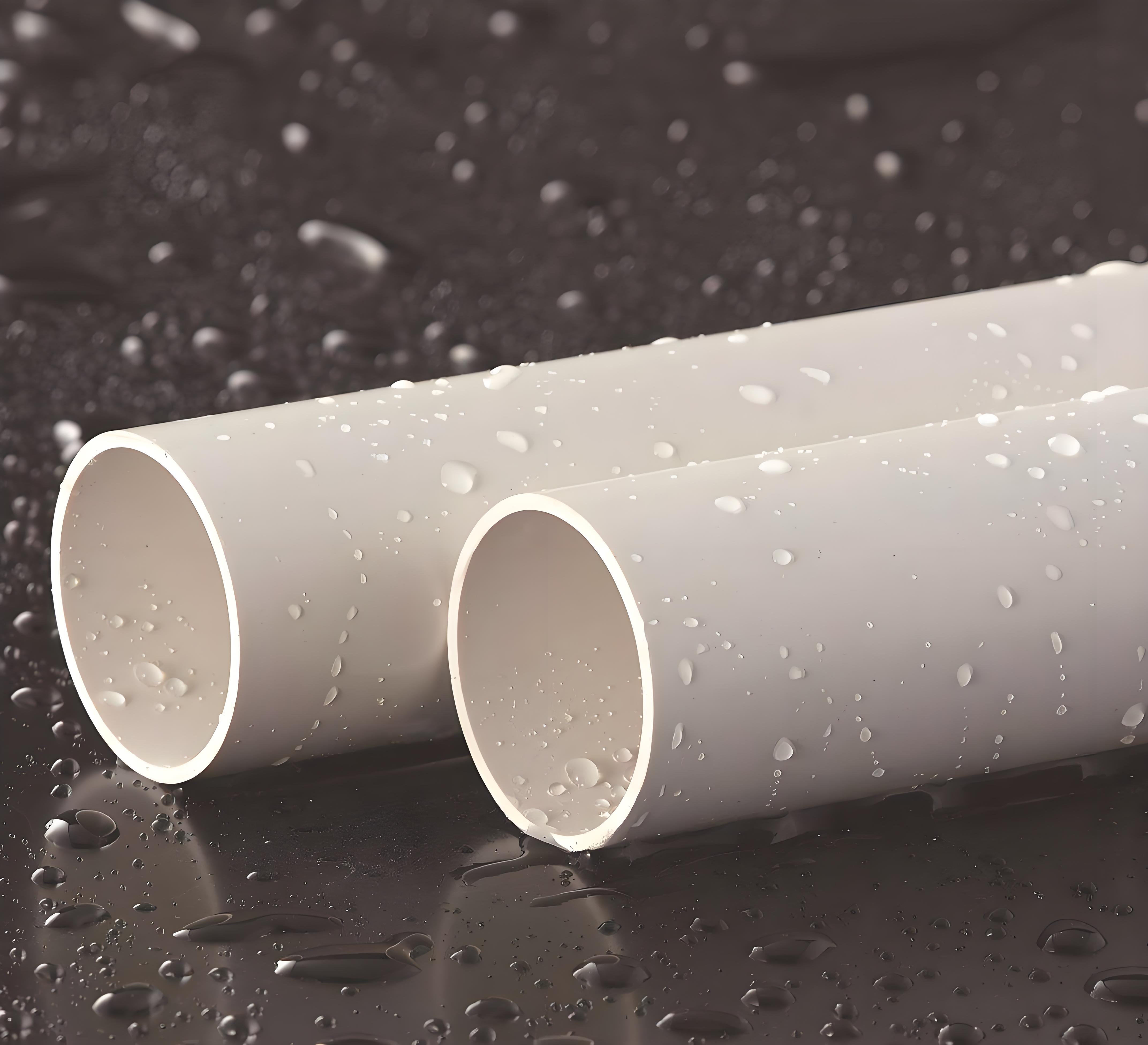

Introduction of Plastic PVC Pipe And Fittings

PVC (polyvinyl chloride) pipe is a kind of plastic pipe made of polyvinyl chloride resin as the main raw material, with light weight, corrosion resistance, pressure resistance, long service life and other characteristics, widely used in construction, municipal, agricultural, industrial and other fields. As a professional PVC pipe manufacturer, we adopt advanced production technology and strict quality management system to ensure that products meet international standards (such as ISO 9001, ASTM, GB/T, etc.), to provide customers with safe, reliable and cost-effective pipeline solutions.

Details of Plastic PVC Pipe And Fittings

1. Material and Process

Raw material: high purity polyvinyl chloride (PVC-U) resin, add stabilizer, impact agent and other additives to ensure the durability and environmental protection of the pipe.

Process: Produced by high-speed extrusion molding technology, the pipe wall is uniform and smooth, and the inner and outer layers are free of bubbles and impurities.

2. Core characteristics

Corrosion resistance: acid and alkali resistance, chemical corrosion resistance, suitable for complex environment.

Light weight and high strength: the weight is only 1/5 of the metal pipe, and the compressive strength is more than 10MPa.

Low flow resistance: the inner wall is smooth, the resistance is small when transporting liquid, energy saving and high efficiency.

Environmental protection and safety: non-toxic and tasteless, in line with drinking water transmission standards (GB/T 10002.1).

Weather resistance: stable performance under -10℃ to 60℃ environment, anti-ultraviolet aging (optional anti-UV layer).

Specifications of Plastic PVC Pipe And Fittings

Parameter name	Numerical value/Description
Material density	1.38-1.55g /cm³
Working pressure	PN0.6-PN1.6 (6-16bar)
Temperature tolerance range	-10 ° C to 60 ° C (short time peak 70 ° C)
Impact strength	≥20kJ/m² (ASTM D256 standard)
Coefficient of linear expansion	0.06-0.08 mm/(m· ° C)
Connection method	Adhesive socket, flange connection, rubber ring seal

Common size (outer diameter × wall thickness)

Nominal diameter (mm)	Outside diameter (mm)	Wall thickness (mm)	Applicable scenario
20	20±0.3	1.6	Household water supply, small flow
32	32±0.3	2.0	Building drainage, agricultural irrigation
50	50±0.3	2.4	Municipal drainage, industrial plumbing
75	75±0.3	3.0	Main drains, ventilation systems
110	110±0.4	3.2	Underground drainage, large works

2. Color and signage

Color: white (standard), gray (industrial), blue (water supply).

Logo: The tube body is printed with brand, specification, production date and implementation standard.

3. Length customization

Standard length: 4m/6m, support custom 3m-12m.

Applications of Plastic PVC Pipe And Fittings

1. Architecture and Municipal Engineering

(1) Water supply system

Municipal water supply pipe network: PVC water supply pipe with DN50-DN315 specifications, pressure rating PN1.0-PN1.6, suitable for urban main water supply pipe, replacing traditional cast iron pipe, reducing rust pollution and ensuring water quality safety.

Indoor cold and hot water pipe: the use of DN20-DN50 small diameter pipe, the inner wall is smooth and does not scale, with CPVC material can withstand 45℃-90℃ hot water, suitable for hotel, residential cold and hot water transmission system.

(2) Drainage and sewage system

Construction sewage discharge: DN75-DN160 PVC drainage pipe for toilet, kitchen sewage riser and cross branch pipe, strong impact resistance, effectively reduce the risk of water leakage.

Municipal underground sewage discharge: DN200-DN630 large-diameter double-wall corrugated pipe is used for urban rain sewage pipe network, with ring stiffness up to SN8-SN16, soil corrosion resistance, and life span of more than 50 years.

(3) HVAC and ventilation system

Air conditioning condensate discharge: DN32-DN50 pipe is used for central air conditioning condensate collection, resistant to humid environment, to avoid corrosion and blockage of metal pipes.

Building ventilation pipe: PVC square/round air pipe (thickness 2-5mm) for basement and garage ventilation, flame retardant performance in line with B1 level standard (GB8624), safety and environmental protection.

2. Agricultural and water conservancy projects

(1) Efficient and water-saving irrigation

Drip irrigation and sprinkler irrigation system: DN20-DN50 thin-wall PVC pipe with drop arrow, sprinkler, water utilization rate increased by 40%, suitable for orchard, greenhouse planting.

Water channel lining: DN200-DN400 pipe is used in farmland aqueduct to reduce leakage loss, and the anti-ultraviolet formula is suitable for long-term open use.

(2) Aquaculture and water treatment

Aquaculture tank circulating water system: gray industrial grade PVC pipe (acid and alkali resistance) for mariculture tank inlet and drainage pipe, salt spray corrosion resistance, to avoid water pollution.

Rural drinking water renovation: Blue water supply pipe (in line with GB/T 10002.1) is used for centralized water supply projects in mountainous areas, light and easy to install, to solve water problems in remote areas.

3. Industrial and energy fields

(1) Chemical and pharmaceutical industries

Corrosive medium transportation: DN25-DN150 industrial grade PVC pipe (containing chemical resistant additives) is used to transport weak acids (such as hydrochloric acid, sulfuric acid diluent), lye and organic solvents, replacing stainless steel pipes, reducing the cost by more than 50%.

Exhaust gas emission system: PVC high temperature resistant pipe (CPVC material) for chemical plant waste gas treatment equipment, resistant to 90℃ corrosive gas, life is 2 times that of PP pipe.

(2) Power and communication protection

Cable threading pipe: DN32-DN110 flame retardant PVC electrical sleeve for building wire protection, excellent insulation performance (breakdown voltage ≥20kV), in line with JG 3050 standards.

Optical fiber communication pipe: orange/red PVC solid wall pipe (ring stiffness SN4) for underground optical fiber laying, resistance to pressure and moisture, to avoid signal interference.

(3) Mining and energy engineering

Mine drainage and ventilation: DN100-DN300 thickened PVC pipe is used in coal mine drainage system, flame retardant and anti-static (in line with MT 558.1 standard), and the safety is far superior to metal pipes.

Solar water heating system: CPVC heat collection circulation pipe can withstand high temperature hot water (≤90℃), and the heat loss rate is less than 5% after supporting the insulation layer.

—

4. Environmental protection and special use

(1) Sewage treatment and recycling

Sewage plant pipe network: DN400-DN800 PVC-M (modified high impact resistance) pipe for sewage treatment plant inlet pipe network, hydrogen sulfide corrosion resistance, maintenance costs reduced by 30%.

Rainwater collection and utilization: Green environment-friendly PVC pipe is used in sponge city rainwater storage system, 100% recyclable, in line with the requirements of green building certification.

(2) Customized for special scenarios

Food grade pipeline: White lead-free formula PVC pipe (FDA certified) for liquid transportation in dairy products and beverage factories, with a health grade up to NSF/ANSI 61 standard.

Laboratory exhaust system: Transparent PVC pipe for chemical laboratory exhaust gas emission, corrosion resistance and easy to observe the gas flow state.

5. Home and public facilities

Garden landscape water: DN20-DN32 color PVC hose is used for garden fountains and artificial lake circulating water, beautiful and weather-resistant.

Swimming pool and spa equipment: blue PVC-U pipe for swimming pool filtration system, resistant to chloride ion corrosion, anti-algae and antibacterial.

Public toilet drainage: DN110 double-wall corrugated pipe is used for centralized sewage treatment in scenic spots and service areas, and the installation efficiency is increased by 60%.

Packing and Shipment

1. Packaging method

Bulk: Small diameter pipe (≤50mm) is fixed with a binding tape, 10-20 pieces per bundle.

Pallet packing: Large caliber pipe (≥75mm) using wooden pallet + winding film, each pallet ≤1 ton.

Anti-shock protection: the end of the pipe is equipped with plastic sheathing to prevent transportation bump.

Shipment:By sea,railway,by air or as customer’s request.

Company Profile

Luoyang Datang Energy Tech Co.Ltd was established in 2015 and located in High-tech development zone, Luoyang City, covers a large area with state-of-the-art facilities. Our government offers a supportive environment, including convenient transportation and access to essential resources. Since inception in 2015, we have been committed to excellence in pipes and fittings, continuously innovating to meet market demands.

If you need PPR Pipes and Fittings,Please feel free to contact us(sales@pipesandfittings.net)

Payment Terms

T/T,L/C at sight,Western Union & Paypal,etc.

FAQ of Plastic PVC Pipe And Fittings

Q1: Can PVC pipe be used for hot water transportation?

A: Conventional PVC-U pipe is suitable for cold water ≤45℃; If you need to transport hot water, it is recommended to choose CPVC (chlorinated polyvinyl chloride) pipe, the temperature can reach 90℃.

Q2: What is the difference between PVC pipe and PE pipe?

A: PVC pipe is more rigid and suitable for pressure system; PE pipe has good flexibility and is mostly used for buried gas/water supply.

Q3: How to cut and connect PVC pipe?

A: Cutting: Use a special cutter or saw blade to make sure the section is flat.

Connection: socket adhesive (need to clean burrs + apply PVC glue) or rubber ring seal.

Q4: What is the service life of PVC pipe?

A: Under normal conditions, the service life is more than 50 years. Outdoor it is recommended to choose the anti-UV model to prevent aging.

Q5: Do you support custom non-standard sizes?

A: Yes! We provide custom service with outer diameter 20mm-630mm, lead time is 7-15 days.
