LUOYANG DATANG ENERGY TECH CO.,LTD
HIGH QUALITY HDPE WATER SUPPLY PIPE
PRODUCT PARAMETERS
Description
Introduction of HDPE Water Supply Pipe
HDPE (High-Density Polyethylene) pipes,which is a popular choice in water supply systems due to their numerous advantages, including durability, flexibility, and resistance to corrosion. These pipes are widely used for both drinking water and non-drinking water distribution systems.Our products are made into manufactured into ISO4427 standard, at the same time, it can also conform to EN12201/AS4130 standards.
Details of HDPE water supply pipe
Raw Material:Virgin PE80 or PE100
Colors Available:Black color with blue strips or blue color, or as per request
Density (g/cm³) :0.941~ 0.965
SDR/pressure ratings:
For HDPE Pipe be made of PE100 grade material:
SDR9-PN20, SDR11-PN16, SDR13.6-PN12.5, SDR17-PN10, SDR21-PN8, SDR26-PN6, SDR33-PN5
For HDPE pipe be made of PE80 grade material:
SDR9-PN16, SDR11-PN12.5, SDR13.6-PN10, SDR17-PN8, SDR21-PN6, SDR26-PN5, SDR33-PN5
Specification available:DN20-1200mm (outer diameter)
Specifations of HDPE water supply pipe
| Norminal Diameterdn (mm) | Wall Thicknesse (mm) | ||||||
| 20 | 2.0 | 2.3 | |||||
| 25 | 2.0 | 2.3 | 3.0 | ||||
| 32 | 2.0 | 2.4 | 3.0 | 3.6 | |||
| 40 | 2.0 | 2.4 | 3.0 | 3.7 | 4.5 | ||
| 50 | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | |
| 63 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 | |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 | |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | 12.3 | |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | 14.0 | |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 | |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 | |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | |
| 315 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | 35.2 |
| 355 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 |
| 400 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 |
| 450 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 |
| 500 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 |
| 560 | 17.2 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 |
| 630 | 19.3 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 | 70.3 |
| 710 | 21.8 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 |
| 800 | 24.5 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 |
| 900 | 27.6 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | |
| 1000 | 30.6 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | |
| 1200 | 36.7 | 45.9 | 57.2 | 67.9 | 88.2 | ||
Applications of HDPE water supply pipe
1. Municipal Drinking Water Distribution
HDPE water supply pipes are regularly used in municipal water supply systems to convey potable water to residences, businesses, and industries.
2. Rural Water Supply Networks
HDPE water supply pipes support for economical and durable solution.
3. Irrigation Systems (Agricultural Water Supply)
HDPE water supply pipes are extensively utilized in irrigation systems for agricultural fields.
4. Industrial Water Supply Systems
HDPE water supply pipes are wildly used in industrial water supply systems for cooling, processing, and cleaning purposes.
5. Fire Fighting Systems
HDPE water supply pipes are employed in firefighting water supply, including hydrant systems and industrial fire suppression systems.
6. Sewage and Wastewater Systems
HDPE water supply pipes are used in sewage and wastewater systems also.
7. Stormwater Management Systems
HDPE water supply pipes are used to transport rainwater and runoff to prevent flooding.
8. Telecommunication and Utility Conduits
HDPE water supply pipes are commonly used as protective conduits for telecommunication cables, electrical wires, and additional utilities.
9. Mining and Construction Applications
HDPE water supply pipes are used for water supply as well as dewater systems to remove water from mines or construction sites.
10. Water Treatment Plant Infrastructures
HDPE water supply pipes are used in water treatment plants to transport raw water, treated water, and chemicals between various stages of the treatment process.
11. Hot Water Systems
HDPE water supply pipes are commony used in hot water supply systems,due to the ability to handle elevated temperatures without losing structural integrity.
12. Recreational and Sports Facilities
HDPE water supply pipes are used in the installation of water supply systems for swimming pools, sports fields, and irrigation for golf courses.
Packing and Shipment

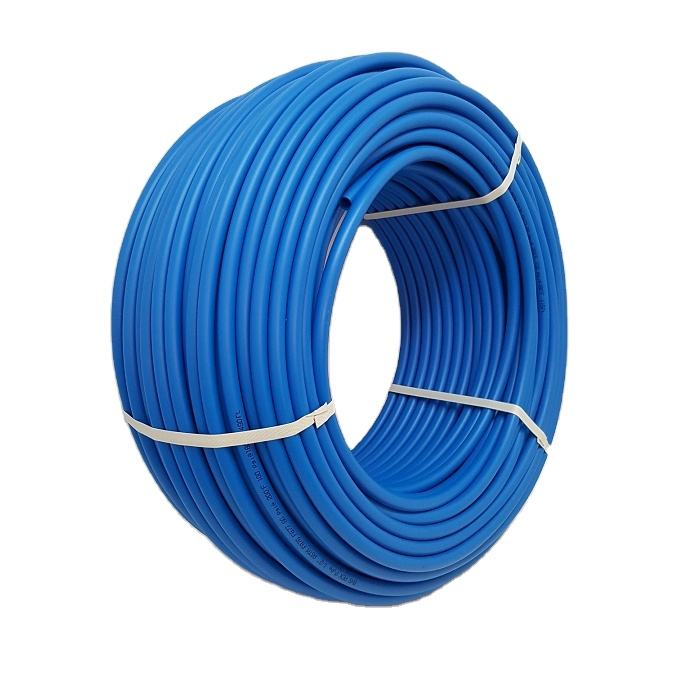

Pipe dia. dn20-63mm be in coils with 100m/200m length
Pipe dia. Dn75-1200mm be packed in bars with 5.8m or 11.8m length
Shipment:By sea,railway,by air or as customer’s request.
Company Profile
Luoyang Datang Energy Tech Co.Ltd was established in 2015 and located in High-tech development zone, Luoyang City, covers a large area with state-of-the-art facilities. Our government offers a supportive environment, including convenient transportation and access to essential resources. Since inception in 2015, we have been committed to excellence in pipes and fittings, continuously innovating to meet market demands.
If you need HDPE Water Supply Pipe,Please feel free to contact us(Email)
Payment Terms
T/T,L/C at sight,Western Union & Paypal,etc.
FAQ of HDPE water supply pipe
1. What is HDPE, and why is it used for water supply pipes?
HDPE (High-Density Polyethylene) is a thermoplastic polymer that is widely used for manufacturing pipes, especially in water supply systems. It is preferred due to its high strength, flexibility, corrosion resistance, chemical resistance, and long service life, making it ideal for transporting potable water, irrigation water, and wastewater.
2. How long do HDPE pipes last?
HDPE pipes are extremely durable and can last for over 50 years when installed and maintained properly.
3. Can HDPE pipes be used for both potable and non-potable water?
Yes, HDPE pipes are versatile and can be used for both potable (drinking) water and non-potable (irrigation or wastewater) water.
4.Are HDPE pipes environmentally friendly?
Yes, HDPE is 100% recyclable and has a relatively low environmental impact during production. Additionally, HDPE pipes are long-lasting, which reduces the need for frequent replacements and further minimizes waste. The material’s resistance to degradation also means it can be used for many years without contributing to pollution.
