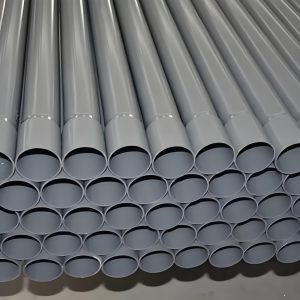

SCH40 UV Resistant Electrical Wiring PVC Pipe

Introduction of SCH40 PVC Pipe

PVC pipe (polyvinyl chloride pipe) is one of the most commonly used pipe materials in modern construction, industrial, and municipal engineering. The two specifications, SCH40 and SCH80, are the most common types of applications. After rigorous testing and certification, they offer significant advantages in pressure resistance, corrosion resistance, and ease of installation. Whether it is industrial, municipal, water treatment, or drainage systems, SCH40 and SCH80 pipes offer superior performance and long life.

Details of SCH40 PVC Pipe

1. SCH40 PVC Pipe

High-quality materials: High-quality PVC raw materials are used to ensure the pipeline’s durability and ability to resist extreme temperatures (-15°C to 55°C; some products can reach 0°C to 60°C).

Multiple specifications: Available in a wide range of sizes from 1/2 “to 14” (or more significant) to meet different project needs.

Smooth inner wall: The smooth inner wall design reduces fluid resistance and improves flow efficiency while being less prone to scaling, making it easy to clean and maintain.

Corrosion resistance: Excellent chemical resistance, suitable for all kinds of corrosive media.

Simple construction: can use cold glue solution method, construction is fast and easy, and the joint is not easy to leak.

Electrical safety: Some products are UL and CSA certified, in line with the safety standards of electrical applications.

2. SCH80 PVC Pipe

High strength: The pipe wall is thicker, the pressure resistance is stronger, and it can withstand 3-4 times the rated pressure.

High pressure resistance: Suitable for high pressure fluid transmission system, to ensure the stability and safety of the system.

Ultraviolet resistance: Laid outdoors for a long time, life can reach more than 30 years.

Chemical stability: Not easy to cause secondary pollution, suitable for drinking water system.

Versatility: Can be used for a variety of industrial applications, including electroplating, waste acid lye discharge, aquarium, etc.

Specifications of SCH40 PVC Pipe

SCH40 & SCH80 PVC Pipe Dimensions and Tolerances

Dimensions (in inches)	Outside diameter (mm)	Tolerance (mm)	SCH40 wall thickness (mm)	Tolerance (mm)	SCH80 wall thickness (mm)	Tolerance (mm)
1/2”	21.34	±0.10	2.77	+0.51	3.73	+0.51
3/4”	26.67	±0.10	2.87	+0.51	3.91	+0.51
1”	33.40	±0.13	3.38	+0.51	4.55	+0.53
1¼”	42.16	±0.13	3.56	+0.51	4.85	+0.58
1½”	48.26	±0.15	3.68	+0.51	5.08	+0.61
2”	60.32	±0.15	3.91	+0.51	5.54	+0.66
2½”	73.02	±0.18	5.16	+0.61	7.01	+0.84
3”	88.90	±0.20	5.49	+0.66	7.62	+0.91
4”	114.30	±0.23	6.02	+0.71	8.56	+1.02
5”	141.30	±0.25	6.55	+0.79	9.52	+1.14
6”	168.28	±0.28	7.11	+0.86	10.97	+1.32
8”	219.08	±0.38	8.18	+0.99	12.70	+1.52
10”	273.50	±0.38	9.27	+1.12	15.06	+1.80
12”	323.85	±0.38	10.31	+1.24	17.45	+2.08
14”	355.60	±0.38	11.10	+1.35	19.05	+2.28

Operating temperature

PVC material: 0°C to 55°C (some products can reach 0°C to 60°C)

CPVC material: 0°C to 95°C

Applications of SCH40 PVC Pipe

Industrial Applications

Chemical plant: Used to transport corrosive media, such as acid lye, wastewater, etc.

Electroplating factory: as a transport pipeline of electroplating solution, to ensure the stability and safety of the plating process.

Oil and natural gas industry: used for oil field water injection, gas injection and oil and gas transmission system.

Municipal Applications

Water systems: Provide clean, safe drinking water to the city.

Drainage system: Ensure that the city drains smoothly to prevent disasters caused by stagnant water.

Sewage treatment: for the inlet and outlet water pipes and internal treatment processes of sewage treatment plants.

Building Applications

Building drainage: The drainage system used in the interior of a building, including toilets, kitchens, etc.

Electrical conduit: As a protective sleeve for electrical wires in the building to ensure the safe operation of electrical wires.

Heating and cooling system: Cold room piping for HVAC systems to increase energy efficiency and reduce operating costs.

Packing and Shipment

Depending on the products and qty, we could make the packing of coiling, rolls, bundle packing, crates or boxes, etc.

Shipment: By sea, railway, by air, or at the customer’s request.

Company Profile

Luoyang Datang Energy Tech Co.Ltd was established in 2015 and located in High-tech development zone, Luoyang City, covers a large area with state-of-the-art facilities. Our government offers a supportive environment, including convenient transportation and access to essential resources. Since inception in 2015, we have been committed to excellence in pipes and fittings, continuously innovating to meet market demands.

If you need PPR Pipes and Fittings,Please feel free to contact us(sales@pipesandfittings.net)

Payment Terms

T/T,L/C at sight,Western Union & Paypal,etc.

FAQ of SCH40 PVC Pipe

Q1.what are the main differences between SCH40 and SCH80?

The main difference between the SCH40 and the SCH80 is its wall thickness and its ability to withstand pressure. The SCH80 has thicker tube walls and is therefore able to withstand higher pressures, making it suitable for high-pressure fluid transfer systems. And the SCH40

Q2.why choose PVC pipe instead of pipe made of other materials?

PVC pipe has good corrosion resistance, UV resistance,

Q3: The difference with CPVC pipe?

Upper temperature limit: PVC 60℃ vs CPVC 93℃

Chemical resistance: CPVC has better resistance to aromatic hydrocarbons

Installation method: CPVC requires special adhesive

Q4: How to install in extreme weather?

Low temperature environment: use low temperature adhesive (construction temperature ≥-5℃)

High temperature area: Reserve 8-10mm expansion gap every 6 meters

Strong sunshine area: covered with aluminum foil sunscreen layer (reduce the coefficient of thermal expansion)

Q5: Service life guarantee?

10 years warranty (subject to the following conditions) :

Working pressure ≤ 80% of the rated value

Avoid direct UV rays (in unprotected condition)

Medium temperature fluctuation < ±15℃/h

Q6:What are the main application of sch40/sch80 PVC pipe?

SCH40 PVC Pipe:

Water supply systems: Suitable for residential, commercial and industrial water supply systems.

Drainage system: Used for internal building drainage, basement drainage and municipal drainage system.

Electrical application: As a conduit for electrical wires to protect cables from damage.

Cold room system: Suitable for HVAC systems due to its low heat conductivity, increasing cold room power and reducing insulation costs.

Other industrial applications: Such as chemical plants, electroplating plants, wastewater treatment plants, etc.

SCH8 PVC Pipe:

High-pressure fluid transmission: Such as oil field, chemical plant high-pressure fluid pipeline.

Water treatment system: The Pipes for soft water, pure water, deionized water and other systems.

Seawater transport: Suitable for seawater desalination, mariculture and other occasions.

Electrical protection: as a protective sleeve for high-voltage cables, to ensure the safe operation of the cables.

Other special applications: Such as underground irrigation systems, swimming pool water systems, etc.
